How much you know about Farm chicken equipment

Cage

(1) Cage assembly: A single cage is assembled into a cage set.

Full ladder cages: upper and lower cage completely staggered two layers, the common layer of 2-3. Its advantages are: do not need to set the feces at the end of the cage, such as cesspool may not have a clear manure system; simple structure; cage cage ventilation and light surface. Disadvantages are: large area, low stocking density, equipment investment.

Half-ladder cages: the upper and lower two-tier cage overlapping 1 / 4-1 / 2, the upper part of the lower overlap to install a certain angle of the dung shield. The ventilated effect than the whole ladder poor, but keeping a higher density.

Overlapping cages: the two upper and lower cage completely overlap, the common layer of 3-4, up to 8 high, feeding density greatly increased. Its advantages are: high utilization of chicken coop, excellent production efficiency. The disadvantage is: chicken coop building, ventilation equipment, cleaning equipment, higher requirements, not easy to observe the flocks, management difficulties.

Single-level parallel type: cage top net at the same level, although feeding density, chicken house utilization rate, but no significant cage group points and lane, management and feeding difficulties.

(2) bred into cages: generally use 2-3 layers overlapping or half ladder cages.

(3) kinds of cages: breeder cages have a single cage and two layers of artificial insemination cages. The former maternal and female natural mating with the cage. The latter is commonly used in artificial insemination farms, the original breeder farms for individual lines can also be used when laying eggs.

drinking water equipment

Drinking water equipment includes pumps, water towers, filters, limit valves, drinking fountains and plumbing facilities. Common types of drinking fountains are:

(1) long tank: its advantages are simple structure, low cost, easy to drink water immune. The disadvantage is that water consumption, susceptible to pollution, scrub work.

(2) vacuum drinking fountains: its advantage is a balanced water supply, easy to use. The disadvantage is the cleaning workload, large amount of water can not be used.

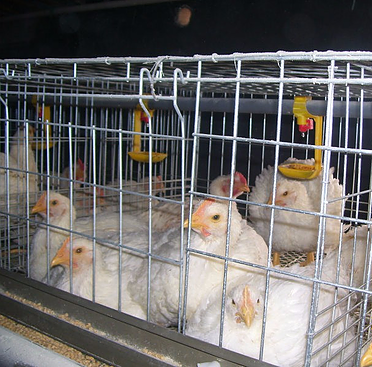

(3) Nipple drinking fountains: its advantage is to save water, but also conducive to epidemic prevention, and without frequent cleaning and replacement. The disadvantage is that every layer of cages are required to set the vacuum tank, is not conducive to drinking water immunity, materials and manufacturing precision requirements are higher.

(4) Cup-type drinking fountains: its advantage is that according to the needs of water supply, water conservation. The disadvantage is that the cup needs frequent cleaning, and the need to be equipped with filters and water pressure adjustment device.

(5) hanging-type drinking fountains: advantages to save water, easy to clean. The disadvantage is the need to adjust the height of the drinker according to the different growth stages of the flock.

feeding equipment:

Including storage tower, feeder, feeder and feeder four parts. The storage tower is usually located at one end or side of the chicken coop, the feed from the feeder to the manger.

(1) Chain Plate Feeding Machine: It is widely used in flat raising and various cages to form chicken house.

(2) spiral spring feeder: widely used in flat to grow chicken coop.

(3) plug-type feeder: a feeder can feed 2-3 houses at the same time. But the plug plate or cable broken, repair trouble and installation of high technical requirements.

(4) Feeding slot: use more flat chicken. Can be made of large, medium and small specifications of the long trough.

(5) feeding bucket: a common feeding equipment for modern chicken industry.

(6) Bucket and car feed cars: Multi-layer cage and overlay cage house.

manure clearing measure:

(1) Trailed manure scraper: It is generally composed of tractor, manure scraper, frame, wire rope, steering pulleys and wire rope rotors. It is mainly used for the cleaning of one or more sewer ditches in the same plane. The scraping dung in two adjacent septic ditches is connected by a steel wire rope. Can also be used for upstairs and downstairs linkage clear manure. The machine is relatively simple structure, easy maintenance, but easy to rope rupture of chicken manure corrosion.

(2) Conveyor cleaning: commonly used in high-density overlapping cage of clear manure, feces drop directly through the bottom of the net conveyor belt, eliminating dung and manure ditches. The use of high-bed-type chicken coop, chicken manure fall directly in the pit, a year after cleaning up manure, very easy.

with 18 years' production experience, we can provide the quality products . The main products of our manufacture are chicken cage, transport cage, poultry feed producing machine, Auto feeding machine, Auto egg collection machine, incubator, brooder heater, egg tray.  We also can provide the pre-sale &after-sale service to our customers. If you have any question about chicken farm equipment, pls feel free to contact us, we are happy to solve your problem, so welcome to contact us
