1. Cages are the main equipment for cage homes

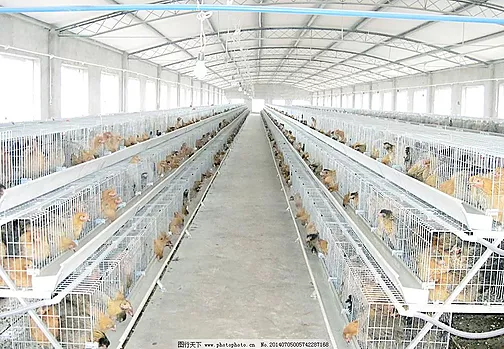

(1) chicken cage: cage broodstock, generally used 3 to 4 overlapping cage. The total height of the cage is about 1.7 meters, the height of the cage is 10-15 cm, the length of each single cage is 70-100 cm, the cage height is 30-40 cm, the cage depth is 40-50 cm. Mesh is generally rectangular or square, the bottom hole diameter of 1.25 cm × 1.25 cm, side and top mesh aperture of 2.5X2.5 cm. The cage door is located in the front, and the adjustable range of cage door is 2 ~ 3 cm. Each cage can hold about 30 chicks.
(2) bred chicken cage: the combination of three-tier use of overlapping type, the overall width of 1.6 to 1.7 meters, a height of 1.7 to 1.8 meters. A single cage 80 cm long, 40 cm high, 42 cm deep. Cage mesh 4 cm × 2 cm, the remaining mesh are 2.5 cm × 2.5 cm. Cage size 14 cm × 15 cm, each cage can accommodate 7 to 15 chickens.

Chickens have to know chicken equipment and appliances

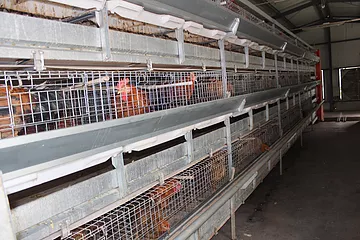

(3) Laying hens cage: Common combinations of ladder, half ladder and overlap, each single cage length 40 cm, 45 cm deep, 45 cm high, 38 cm high after the bottom slope of 6 ° ~ 8 °. Cage out of the cage set for 12 to 16 cm. Cage before the open, 21 to 24 cm wide; 40 cm high, leaving the bottom margin of about 4.5 cm from the bottom net out of the gap. Diameter of the cage bottom mesh spacing 2.2 cm, 6 cm latitude spacing. Top, side, after the network of pore size changes, the general mesh spacing of 10 to 20 cm, latitude 2.5 to 3 cm, each cage can raise 3 to 4 chickens.

2 feeding equipment including feeding machinery and trough. Large-scale chicken farm feeding system mechanization, feeding machines are equipped with troughs.
(1) Chain Feeder: It is the most commonly used feeder for feeding machinery in our country. It can be used for flat feeding and cage feeding. It consists of bin, chain, drive, corner wheel, trough and other components, and some also equipped with feed cleaner.

(2) plug-type feeder: is designed for dry chicken coop, suitable for transporting dry powder full price feed. 9WS - 35 plug-type feeder from the transmission device, material boxes, conveying components, trough, corner, bracket and other components.
(3) trough: common long trough and bucket barrel round trough.
3. Drinking water equipment
(1) Trough drinking fountains: depth of 50 to 60 mm, the mouth width of 50 mm. There are "V" and "U" shaped sinks. Flat to raise the house of the sink each generally 3 to 5 meters long, each chickens account for the length of the sink, usually 1 to 1.6 cm in the nest, breech 3.6 cm.
(2) tower-shaped vacuum drinker; drum and water from the two parts, available galvanized sheet metal and plastic. This drinker is suitable for raising chickens.
(3) nipple drinker: made of steel or stainless steel, by the threaded steel (copper) tube and the thimble on-off valve can be directly installed in the water pipe, the use of gravity to control the nipple water droplets, the thimble end often hanging A drop of water. Chicken water, touch the thimble, the water that is out; drink completed, thimble valve and waterway seal, no longer outflow. There are two types of nipples for drinking chickens and adult chickens. Each drinker for 10 to 20 chicks or 3 to 5 only into chickens. Nipple drinking fountains can be used to raise and cage.

With 18 years' production experience, we can provide the quality products . The main products of our manufacture are chicken cage, transport cage, poultry feed producing machine, Auto feeding machine, Auto egg collection machine, incubator, brooder heater, egg tray. We also can provide the pre-sale &after-sale service to our customers. If you have any question about chicken farm equipment, pls feel free to contact us, we are happy to solve your problem, so welcome to contact us.
