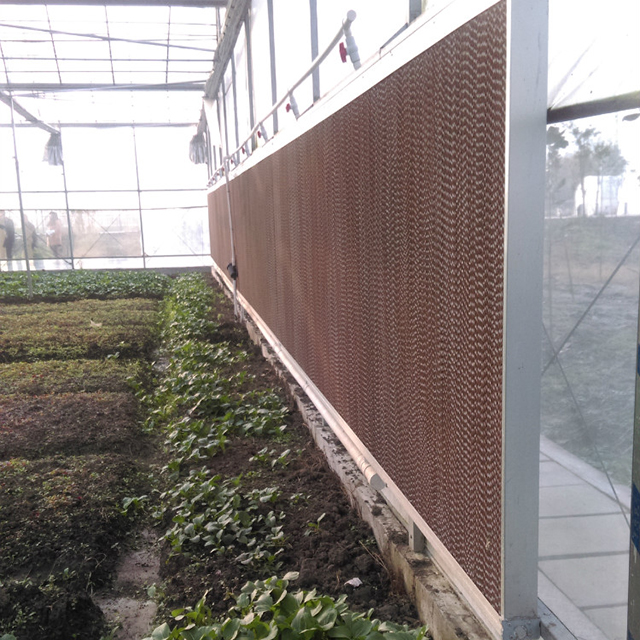

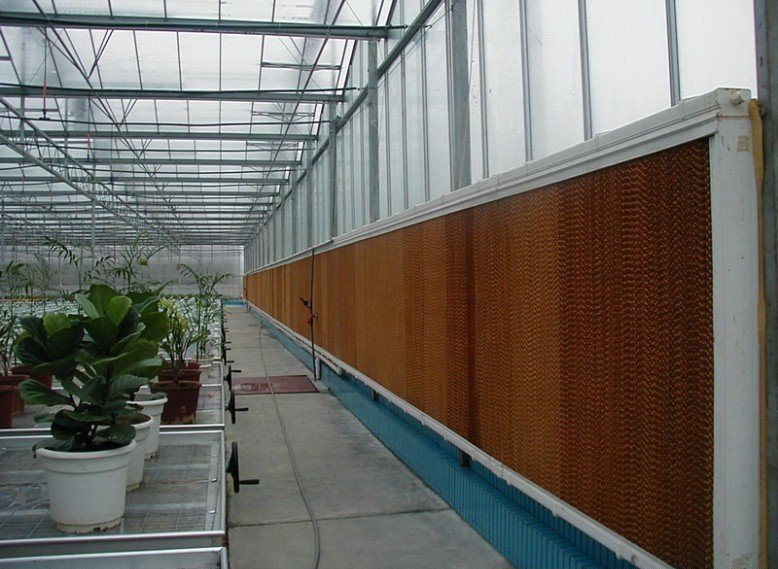

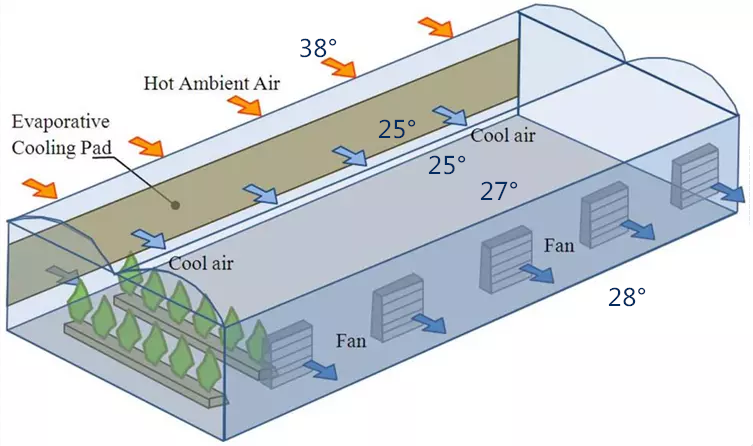

Evaporative cooling pads installed at one end of the greenhouse, the suction ventilator installed in the other end. When the air in greenhouse is needed to cool down, the control system of fan will start, the indoor air is forced out and build-up the negative pressure; At the same time, the water pump water the wet pad. The negative pressure cause the indraft through the wet pad , leading to evaporation and cooling, then the cold air flow through the greenhouse, absorb the indoor heat, so as to achieve the purpose of the circulating cooling.
|

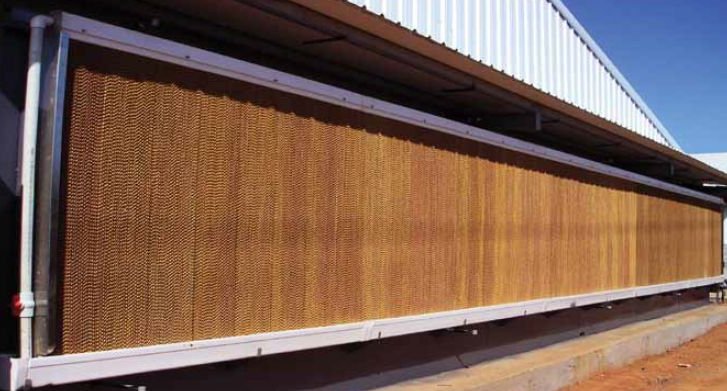

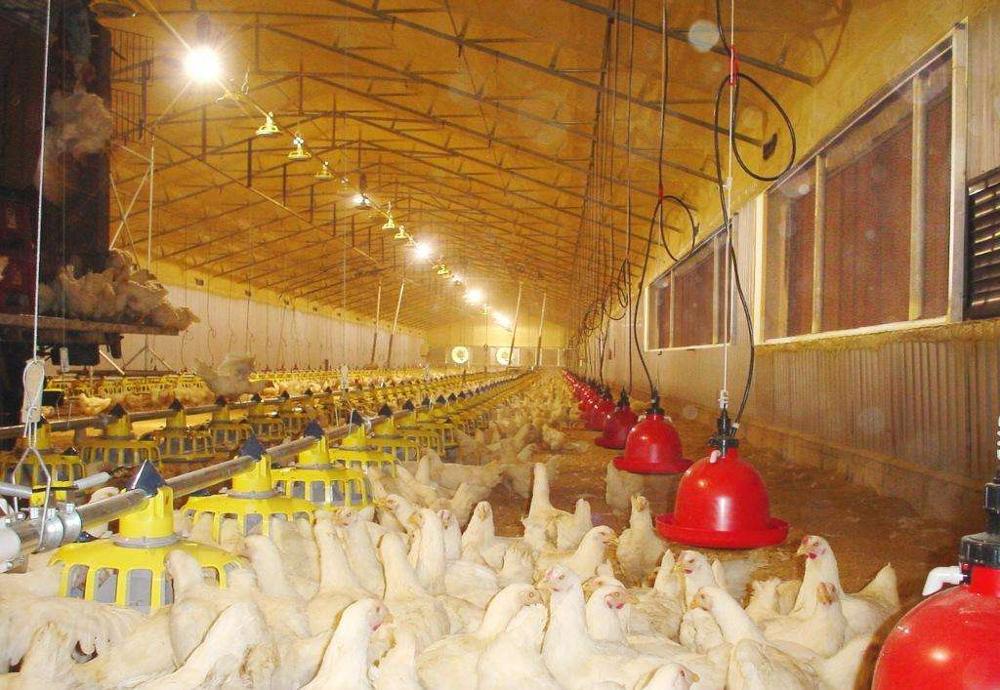

Evaporative cooling pads-exhaust fan of the vertical ventilation cooling combination is the most economical and effective measures to cool the greenhouse in summer. Years from the application of a real show, even in the heat of the day reported, the rational design and installation of a fan of wet curtain cooling system can still control the greenhouse temperature at 30 °C, in order to heat the greenhouse to reduce the adverse effects minimum.In the summer, your chicken house needs evaporative cooling pads to help. |
 |

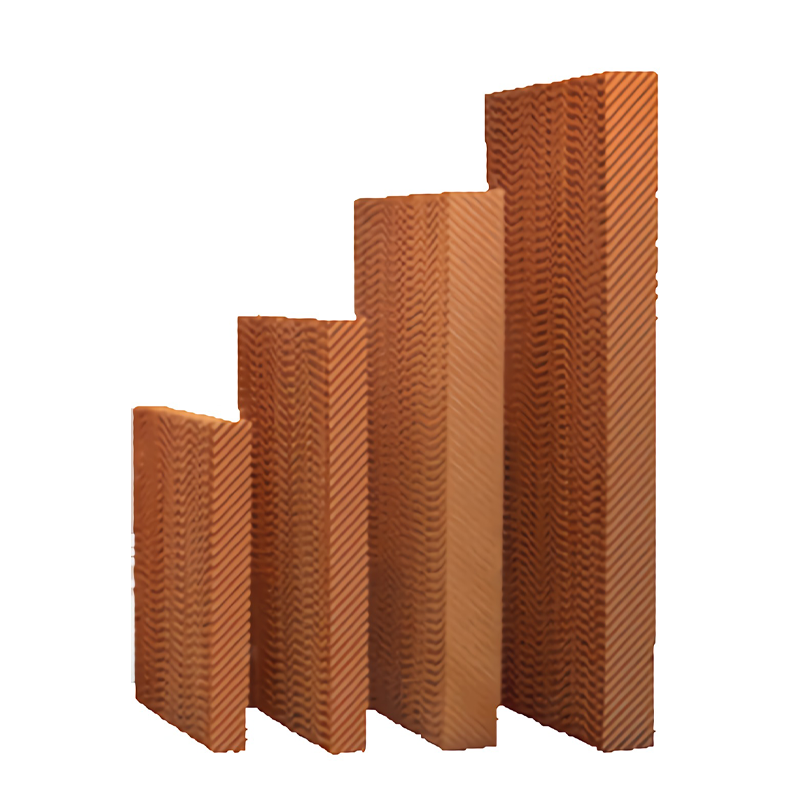

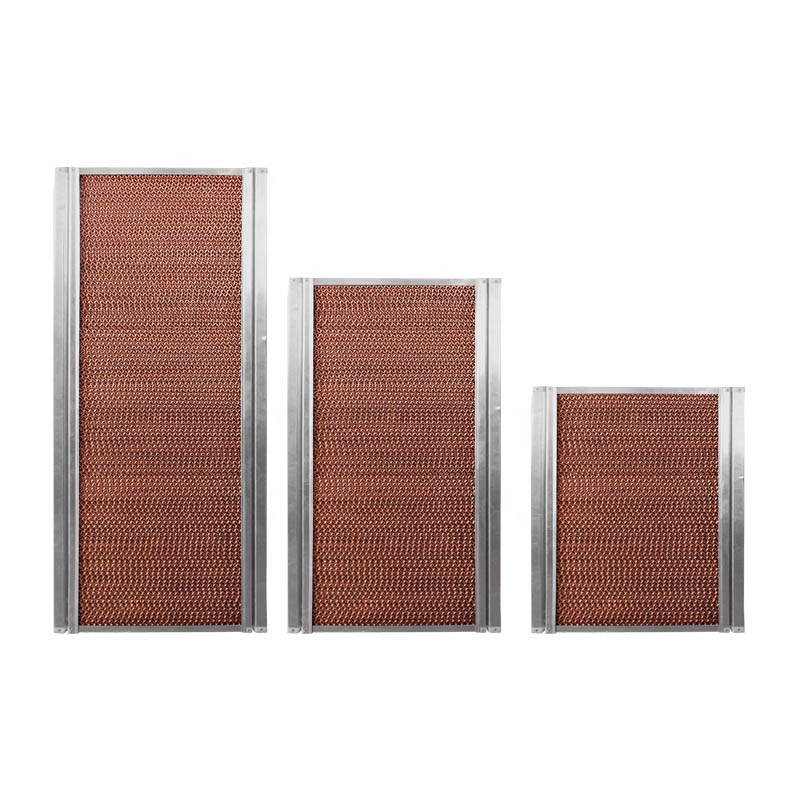

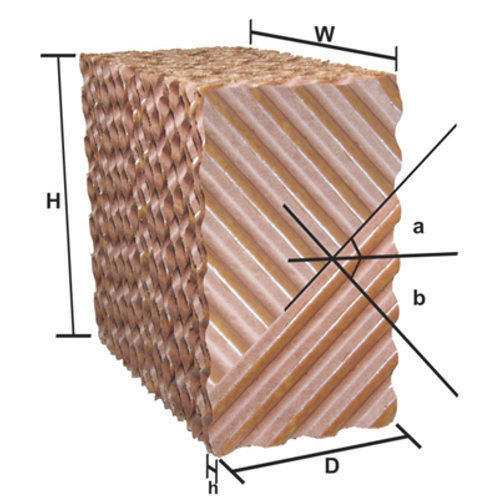

| Specification | QK-SL7060 | QK-SL7090 | QK-SL5090 |
| Height(mm) | 1500/1800/2000 | 1500/1800/2000 | 1500/1800/2000 |
| Width(mm) | 300/600 | 300/600 | 300/600 |
| Depth(mm) | 100/150/200/600 | 100/150/200/300 | 100/150/200/600 |
| h(mm) | 7 | 7 | 5 |
| Wave angle a | 45° | 15° | 45° |
| Wave angle b | 45° | 45° | 45° |

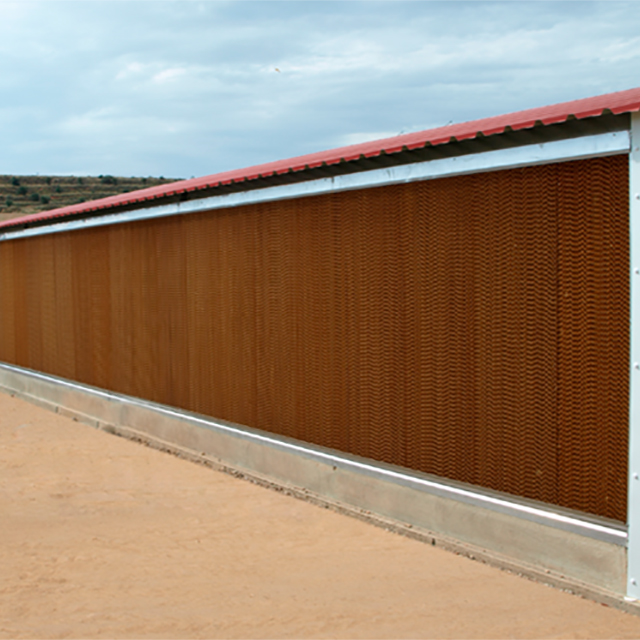

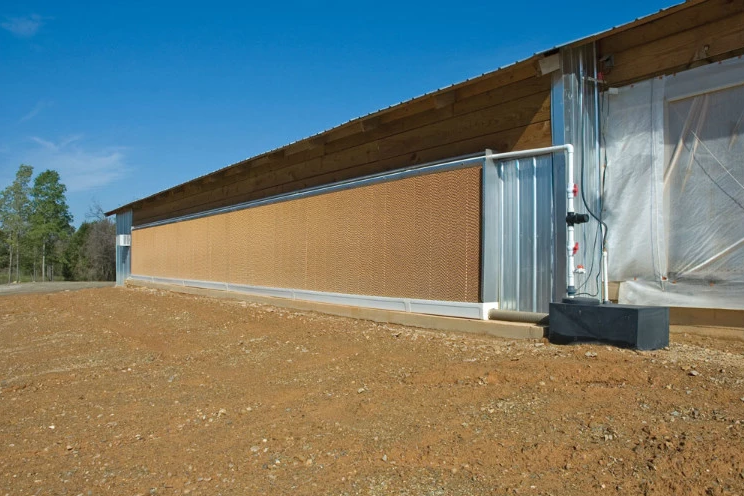

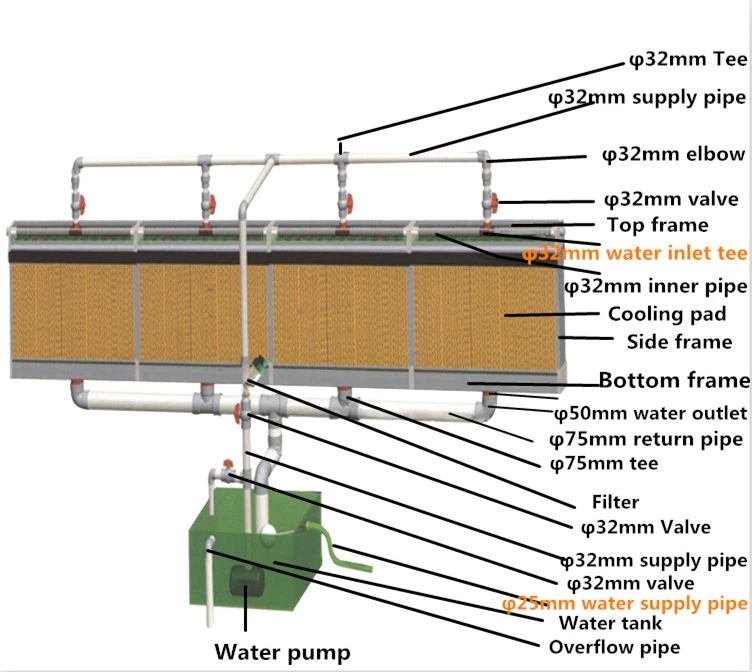

The 3D design of evaporative cooling pads used in chicken house
|
1. Hygroscopicity: Though with the special craft processing crossing linking technology, corrugated paper has high absorbable, high water resistant, mildew proof and long service life. 2. Dry solution: When water stop flowing on the cooling pad surface, the protective coating will dry quickly,so it could prevent parasitic microbes survive on the surface, thus inhibiting the algae and other organic matter from breeding in the surface. 3. Non-porous surfaces: Prevent the algae and mineral substance from residing in the deep, and drying off the surface. |
 |
 |
4.The product absorbs water naturally, with fast speed of penetration and lasting effectiveness. One drop of water can diffuse within 4~5 seconds. The natural absorption height is 60~70 mm /5 minutes, as 200 mm/1.5 hours, having reached international standard. 5.Improved some shortcoming of cooling pad,fragile,inconvenient cleaning,ect.High strength,strong corrosion resistance,high impact resistance,easy cleaning. 6.Galvanized steel, an aluminum frame, and plastic-steel are optional. 7.Low energy consumption that equals just one-tenth of traditional air conditioners. |

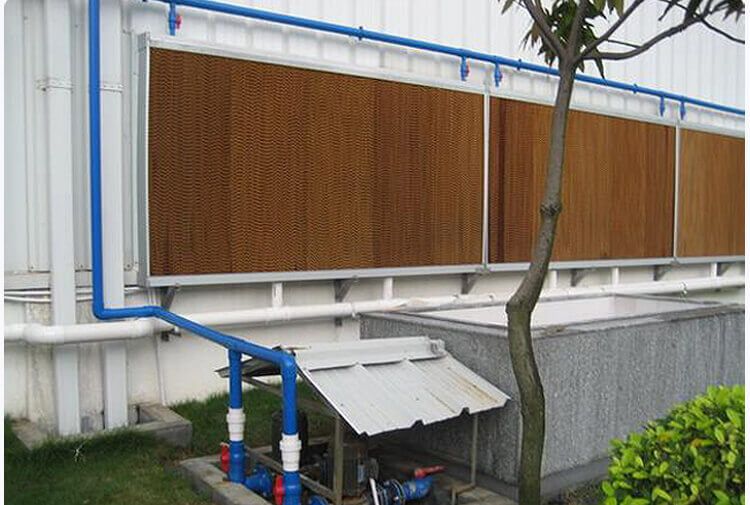

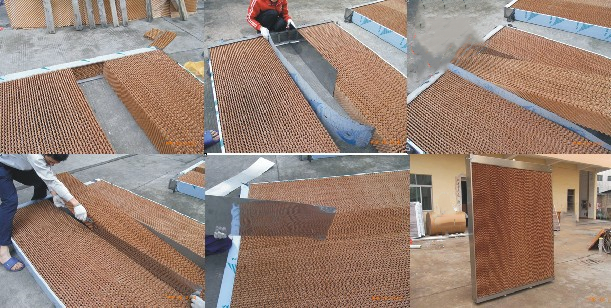

The worker is installing the evaporative cooling pads
|
|

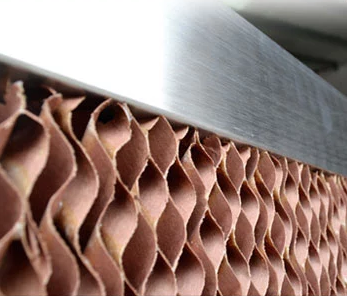

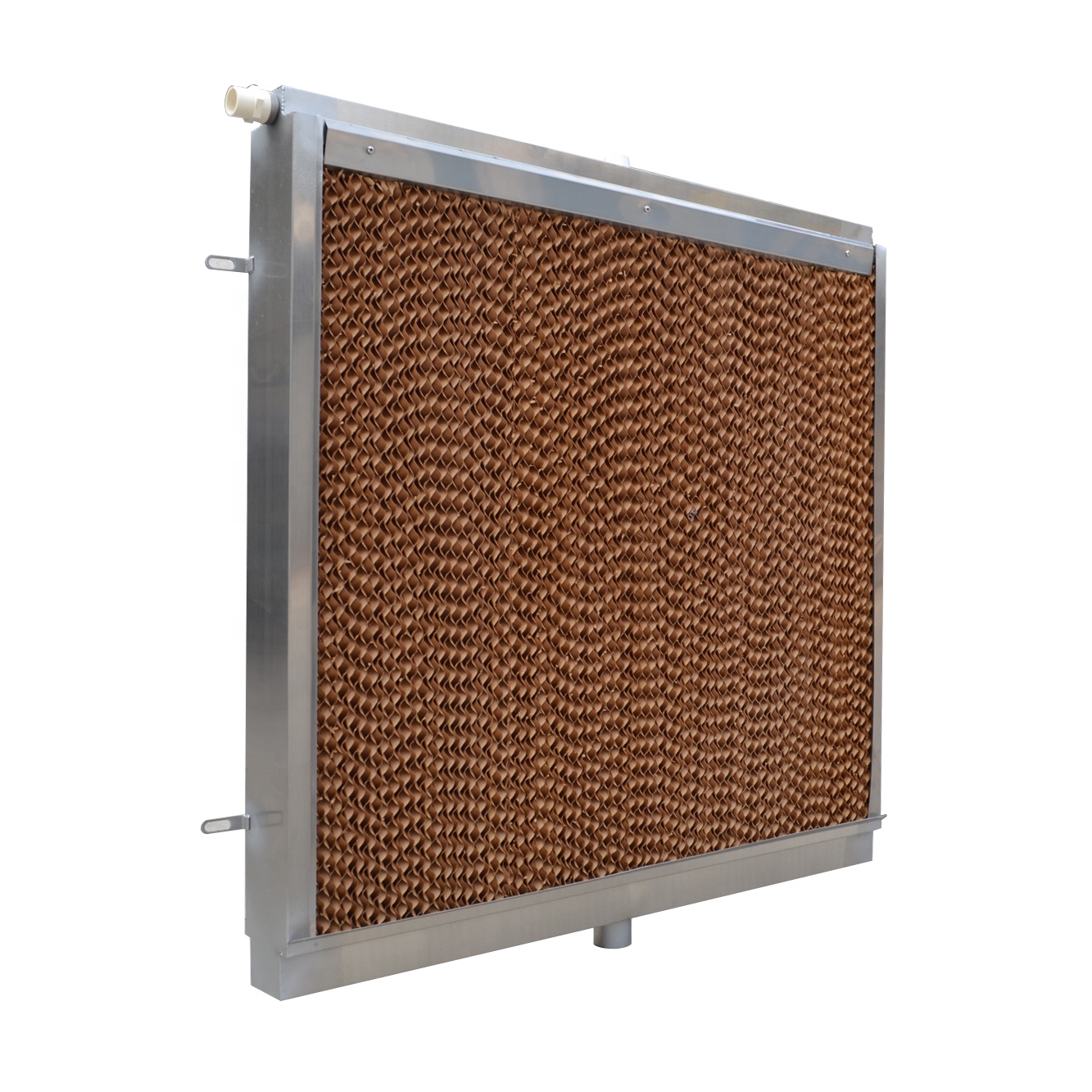

Edge：Stainless steel edge,scrub process,more high-end. |

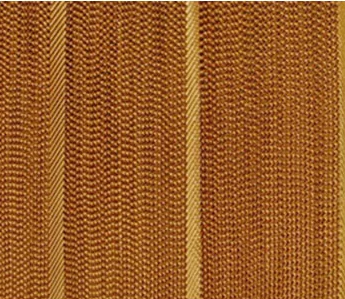

| Wet curtain:Corrugated wet,curtain through special treatment,structural strength,corrosion resistance,long service life. |
|
|
|

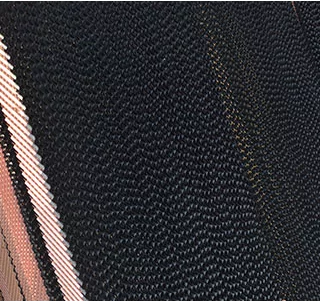

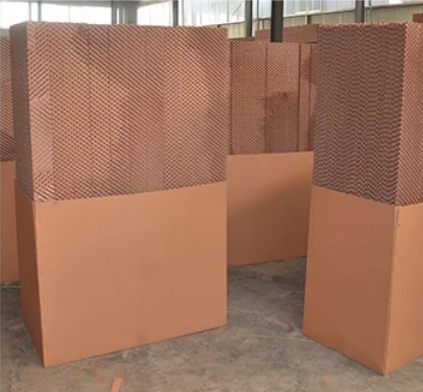

Colors:Coating can be a variety of colors,black,green,brown. |
| Specification | QK-SL7060 | QK-SL7090 | QK-SL5090 |
| Height(mm) | 1500/1800/2000 | 1500/1800/2000 | 1500/1800/2000 |
| Width(mm) | 300/600 | 300/600 | 300/600 |
| Depth(mm) | 100/150/200/600 | 100/150/200/300 | 100/150/200/600 |
| h(mm) | 7 | 7 | 5 |
| Wave angle a | 45° | 15° | 45° |
| Wave angle b | 45° | 45° | 45° |
The 3D design of evaporative cooling pads used in chicken house
|
1. Hygroscopicity: Though with the special craft processing crossing linking technology, corrugated paper has high absorbable, high water resistant, mildew proof and long service life. 2. Dry solution: When water stop flowing on the cooling pad surface, the protective coating will dry quickly,so it could prevent parasitic microbes survive on the surface, thus inhibiting the algae and other organic matter from breeding in the surface. 3. Non-porous surfaces: Prevent the algae and mineral substance from residing in the deep, and drying off the surface. |
|
|
|
4.The product absorbs water naturally, with fast speed of penetration and lasting effectiveness. One drop of water can diffuse within 4~5 seconds. The natural absorption height is 60~70 mm /5 minutes, as 200 mm/1.5 hours, having reached international standard. 5.Improved some shortcoming of cooling pad,fragile,inconvenient cleaning,ect.High strength,strong corrosion resistance,high impact resistance,easy cleaning. 6.Galvanized steel, an aluminum frame, and plastic-steel are optional. 7.Low energy consumption that equals just one-tenth of traditional air conditioners. |
The worker is installing the evaporative cooling pads
|
|
Edge：Stainless steel edge,scrub process,more high-end. |
| Wet curtain:Corrugated wet,curtain through special treatment,structural strength,corrosion resistance,long service life. |
|
|
|
Colors:Coating can be a variety of colors,black,green,brown. |
