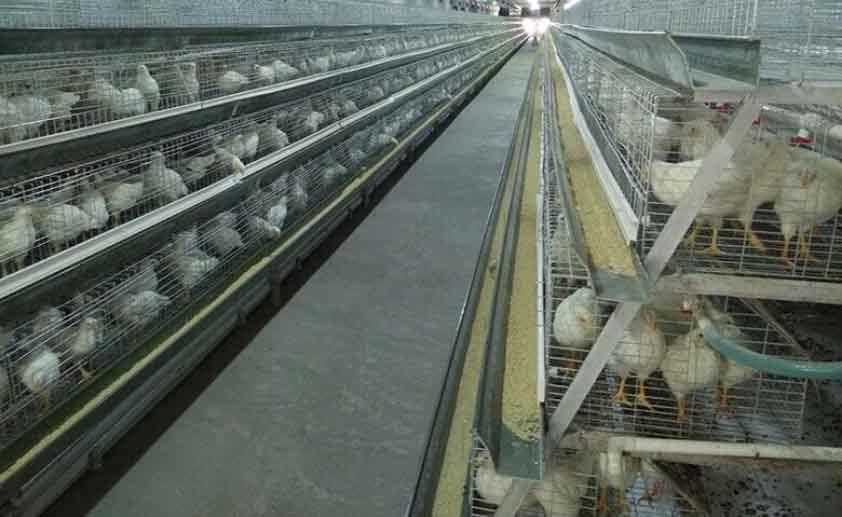

broiler chicken cage A Type

Broiler cages are reared for meat production; the broiler cage system is mainly used for rearing broilers , one day old broiler chicks can be directly put into the cages and raised to 45 days old, The Broilers grows very faster and are ready for sale at 12 weeks.cages are unnecessarily changed during their growing.

Broiler Cage

1.If you hatch the chicks on your farm you may need an incubator and hatcher. We can provide equipment for a 48,000 to 50,000 egg capacity.

2.A type broiler cages are suitable for between 4,000 and 10,000 birds or chicken. We suggest you also use a manure removal machine because by removing the droppings timely you will help to reduce any spread of disease and improve egg production rate. At the same time it will save both time and labor costs. A semi-automatic feeding machine is also necessary. These are small and cost a lot less than fully automatic machines. They also use batteries so avoid the possibility of power failure. You can feed 10,000 chickens in just half an hour, which will save a lot in labor costs.

3.If you have more than 10,000 chickens you may need to get fully automated machines including one that does automatic feeding, another for automatic egg collection, as well as an automatic manure removal machine. If the scale of your operation exceeds 50,000 chickens, you will need a feed silo. For less than 50,000 chickens you can just use one screw conveyer to convey the food to the hopper. If you want to build a closed system, you need to know that an exhaust fan and cooling pad are necessary environment control equipment items. If you use an open system and the weather is hot, you can use a fogger.

4.If you want to purchase a slaughter machine, we have small and medium sized pluckers. We can also provide equipment for a large-scale slaughterhouse operation.

Tips:

Please let us know which country are you in? What is your farm plan? how many chicken do you have ? In African countries, we have branch and warehouse. Our sales department will give you helpful advice on your farm and feeding, quotation and house design.

Let us talk online whatsApp +86 18032423029 or send email to Info@Chinachickencage.com, I am Amanda Zhou.

The Qun Kun® Broiler cage originates from Qun Kun’s long poultry farming experience and from the innovative test cycle carried out on broilers of various breeds and weights

1. The Better Raw material selection
Carbon content decides the metal wire hardness, our metal wire for cage ordered from China big steel factory, high hardness and high elastic deformation, make the cage mesh no deformation,  Our broiler cage generally has a lifespan that is at least three years more than the common factory-made types.

2. Up to 20 years using
Quality hot deep galvanized cage mesh will ensure your cage that it remains protected from corrosion and rust for 10 years at least, while the broiler cage itself will last for double this time.

3. Meat quality better and increasing faster
1) Qun Kun® unique bottom mesh for broiler standing, flexible and the broiler feel more comfortable
2) Qun Kun® broiler cage size design is as adult broiler size and weight, there are not too much space for broiler walking, so reduce energy consumption and store more fat

4. Very easy to install.

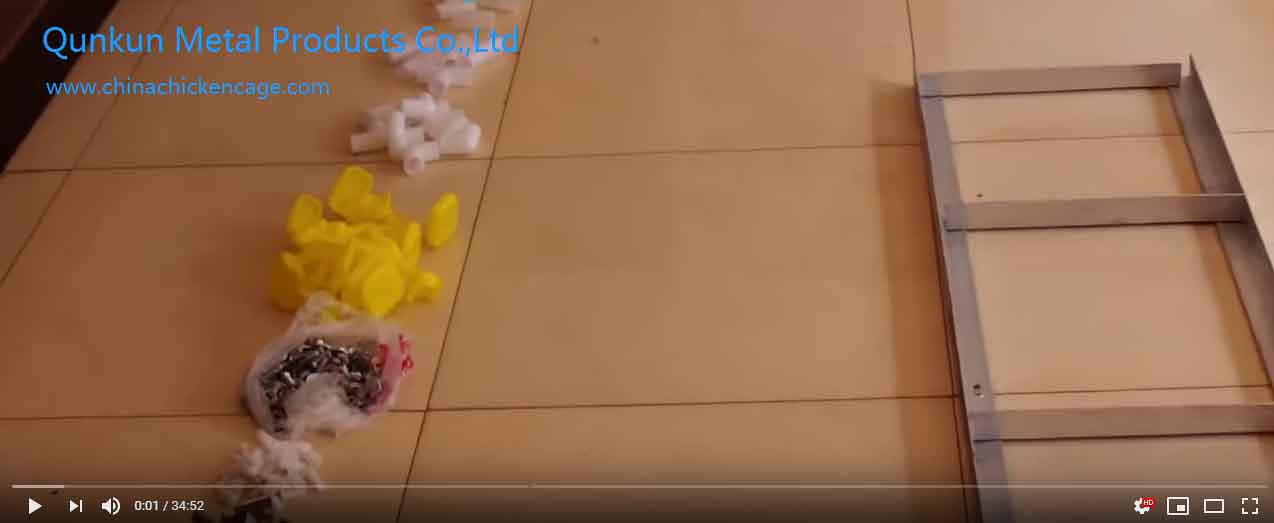

We can send poultry cage installation video to you. You can check it out on YouTube
5.Free layout design
We offer a free design service based on the size of poultry house or coop you want.



1. Put one day old chick broiler directly to broiler cage.

2. Your broiler cage layout will be designed as your land or chicken house, freely supply house design and layout.

3. Normally the walking way is between 0.7m to 1m, building pit under cage system, the distance between the wall and cage row is 0.7m

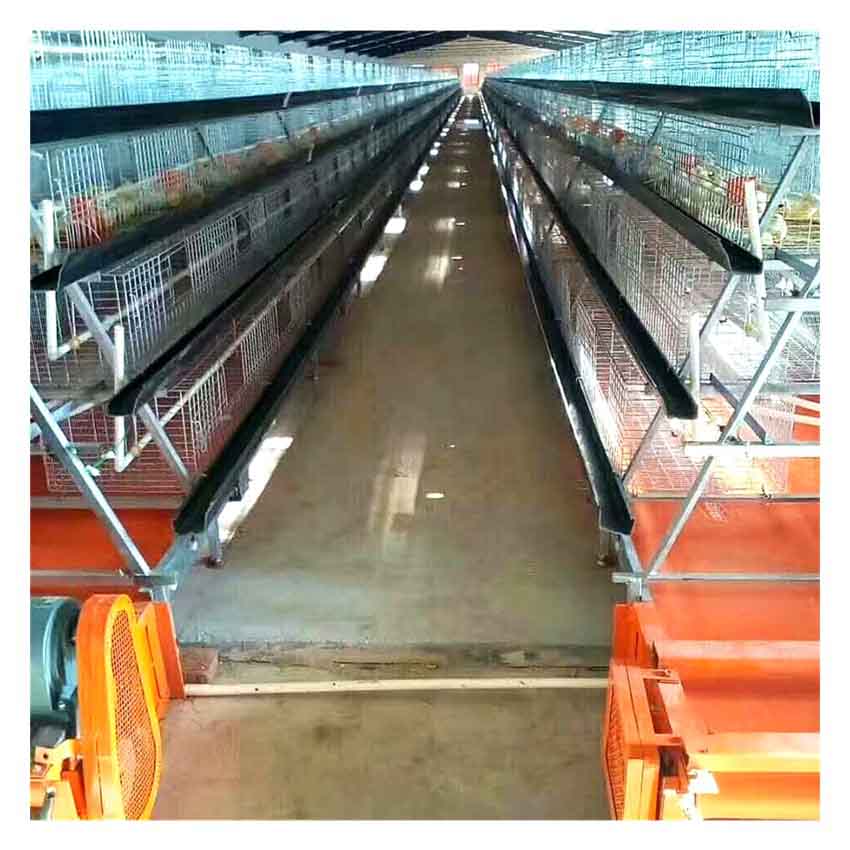

The main difference between A and H type broiler cages is the method used to remove the droppings, A type cages use a manure scraper, while the H type uses a belt to remove the droppings.

Broiler Cage

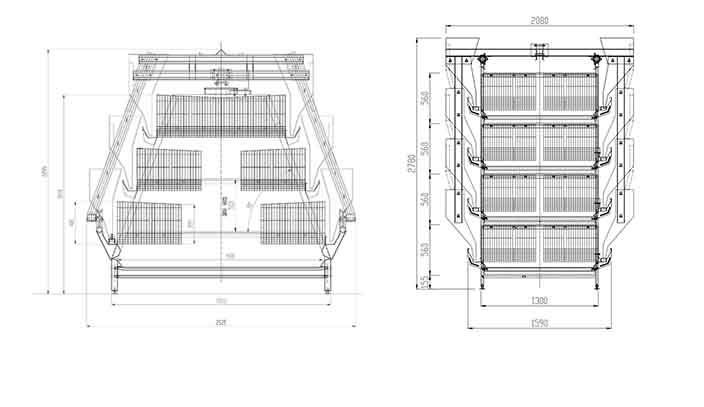

The specifications of broiler cages
Item No. System Type Size (L x W x H) Total Cells Nos of Chicks/Cell Nos of Chicks/ Set
H type
 		 Without automatic manure cleaning system 3 tiers 2 cells 1.4 x 0.7 x 1.5m 6 9-10 54-60
4 tiers 2 cells 1.4 x 0.7 x 1.8m 8 9-10 72-80
With automatic manure cleaning system 3 tiers 2 cells 1.4 x 0.7 x 1.75m 6 9-10 54-60
4 tiers 2 cells 1.4 x 0.7 x 2.05m 8 9-10 72-80
A type 4 tiers 5 cells 1.95*2.4*1.95m 40 2 80

Material High quality low carton steel wire (Q195/Q235)
Surface Treatment And Service Life Cold galvanized chicken cage (6-year to 10-year)
Hot galvanized chicken cage (20-year to 30-year)
Accessories PVC feeding trough,nipple drinker,water pipe,water tank,reducing valve,cage frame, water tank frame, pliers and another fittings
Notice:
The cage can use for baby chickens; it put 48 birds in top floor. 24 birds per cell.

After one week, put 24 birds to the second floor, 12 birds per cell

After 20-25 days, put 16 birds to the bottom floor, 8 birds per cell



Special Advantages Of Qunkun Chicken Cage System

1. They save space.
More broilers can be fed in the cage putting the space to better use. The H type of broiler cage has three tiers, with the third cage near to the ground. The second and top tiers are on top of the third tier. Facts prove that the capacity in broiler cage is three or four times than on ground in same area.
2. They save feed.
The old way to feed is on the ground, with broilers eating, walking and sleeping on the ground. Workers added food to the feeder, but they were not able to control the quantity of food. So they would simply feed the broilers a fixed amount at certain times.
3. They reduce the spread of disease
Ventilation is better in broiler cage than on the ground, which is how they help to prevent the transmission of disease and bacteria amongst the flock.
4. Stronger and more durable
Broilers weight is heaver than layers, it request the cage mesh more stronger and longer lifespan for frequently using and transferring, experience from our own broiler farm proof that Qun Kun® broiler cage lifespan is up to 15 year
5. Land & Space Saving
A type design, use up space too, raising capacity is three or four times than ground feeding

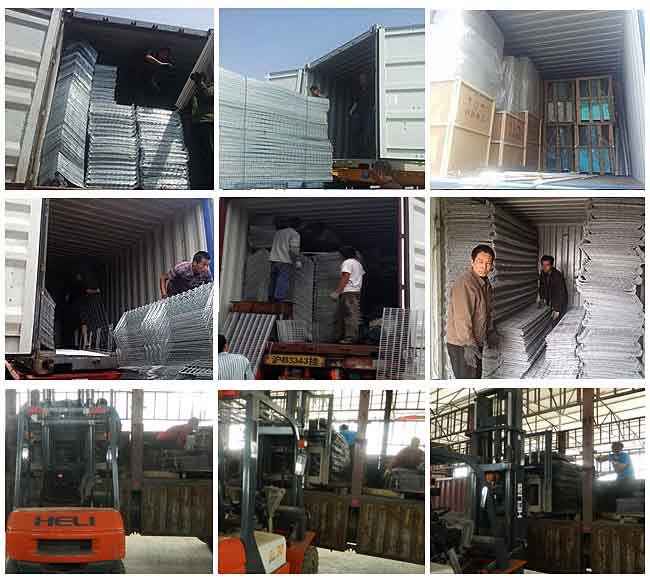

The cage and frame are no package , some fittings are in plastic bags and carton box.

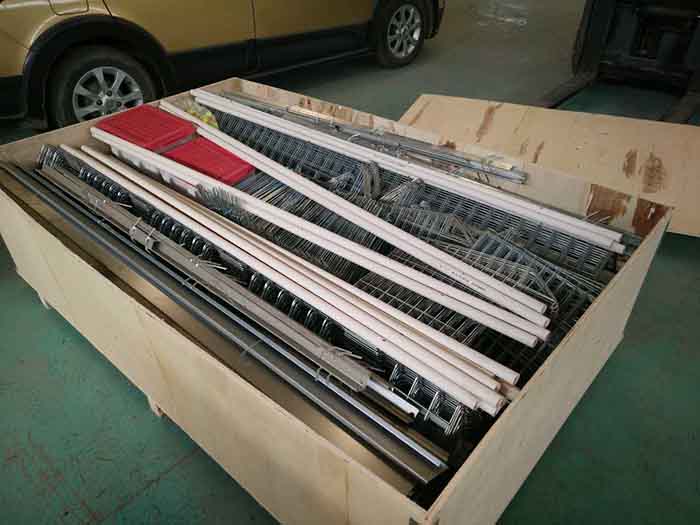

1.Less of full container: Wooden Box.

2. Full container: Nude packing

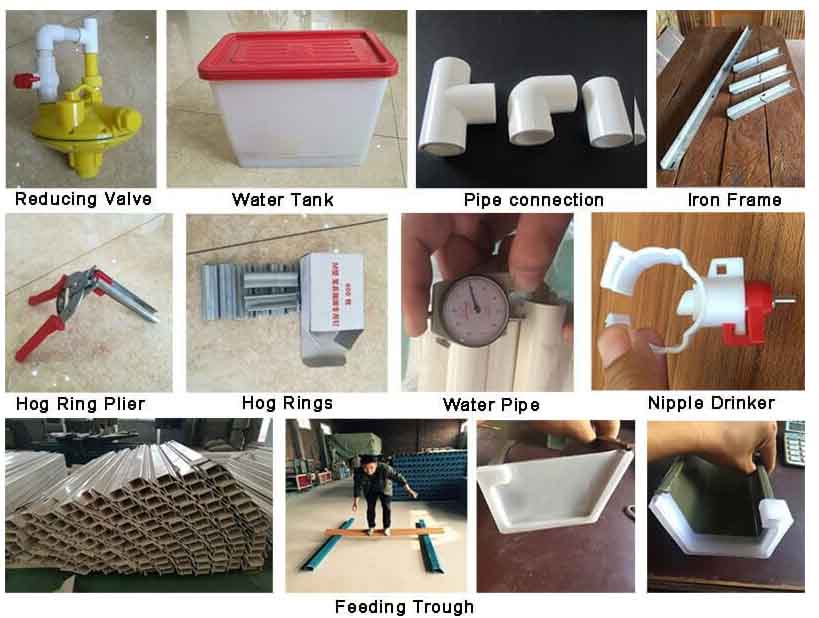

Our broiler chicken cages from Qunkun have included all the fittings and accessories as follows:









Why QunKun®



The Qun Kun® Broiler cage originates from Qun Kun’s long poultry farming experience and from the innovative test cycle carried out on broilers of various breeds and weights
1. The Better Raw material selection
Carbon content decides the metal wire hardness, our metal wire for cage ordered from China big steel factory, high hardness and high elastic deformation, make the cage mesh no deformation,  Our broiler cage generally has a lifespan that is at least three years more than the common factory-made types.

2. Up to 20 years using
Quality hot deep galvanized cage mesh will ensure your cage that it remains protected from corrosion and rust for 10 years at least, while the broiler cage itself will last for double this time.

3. Meat quality better and increasing faster
1) Qun Kun® unique bottom mesh for broiler standing, flexible and the broiler feel more comfortable
2) Qun Kun® broiler cage size design is as adult broiler size and weight, there are not too much space for broiler walking, so reduce energy consumption and store more fat

4. Very easy to install.
We can send poultry cage installation video to you. You can check it out on YouTube
5.Free layout design
We offer a free design service based on the size of poultry house or coop you want.

Projects

1. Put one day old chick broiler directly to broiler cage.

2. Your broiler cage layout will be designed as your land or chicken house, freely supply house design and layout.

3. Normally the walking way is between 0.7m to 1m, building pit under cage system, the distance between the wall and cage row is 0.7m

The main difference between A and H type broiler cages is the method used to remove the droppings, A type cages use a manure scraper, while the H type uses a belt to remove the droppings.

Broiler Cage

Specifications

The specifications of broiler cages
Item No. System Type Size (L x W x H) Total Cells Nos of Chicks/Cell Nos of Chicks/ Set
H type
 		 Without automatic manure cleaning system 3 tiers 2 cells 1.4 x 0.7 x 1.5m 6 9-10 54-60
4 tiers 2 cells 1.4 x 0.7 x 1.8m 8 9-10 72-80
With automatic manure cleaning system 3 tiers 2 cells 1.4 x 0.7 x 1.75m 6 9-10 54-60
4 tiers 2 cells 1.4 x 0.7 x 2.05m 8 9-10 72-80
A type 4 tiers 5 cells 1.95*2.4*1.95m 40 2 80

Material High quality low carton steel wire (Q195/Q235)
Surface Treatment And Service Life Cold galvanized chicken cage (6-year to 10-year)
Hot galvanized chicken cage (20-year to 30-year)
Accessories PVC feeding trough,nipple drinker,water pipe,water tank,reducing valve,cage frame, water tank frame, pliers and another fittings
Notice:
The cage can use for baby chickens; it put 48 birds in top floor. 24 birds per cell.

After one week, put 24 birds to the second floor, 12 birds per cell

After 20-25 days, put 16 birds to the bottom floor, 8 birds per cell

Advantage

Special Advantages Of Qunkun Chicken Cage System

1. They save space.
More broilers can be fed in the cage putting the space to better use. The H type of broiler cage has three tiers, with the third cage near to the ground. The second and top tiers are on top of the third tier. Facts prove that the capacity in broiler cage is three or four times than on ground in same area.
2. They save feed.
The old way to feed is on the ground, with broilers eating, walking and sleeping on the ground. Workers added food to the feeder, but they were not able to control the quantity of food. So they would simply feed the broilers a fixed amount at certain times.
3. They reduce the spread of disease
Ventilation is better in broiler cage than on the ground, which is how they help to prevent the transmission of disease and bacteria amongst the flock.
4. Stronger and more durable
Broilers weight is heaver than layers, it request the cage mesh more stronger and longer lifespan for frequently using and transferring, experience from our own broiler farm proof that Qun Kun® broiler cage lifespan is up to 15 year
5. Land & Space Saving
A type design, use up space too, raising capacity is three or four times than ground feeding

Package



The cage and frame are no package , some fittings are in plastic bags and carton box.



1.Less of full container: Wooden Box.

2. Full container: Nude packing





Fittings

Our broiler chicken cages from Qunkun have included all the fittings and accessories as follows:
