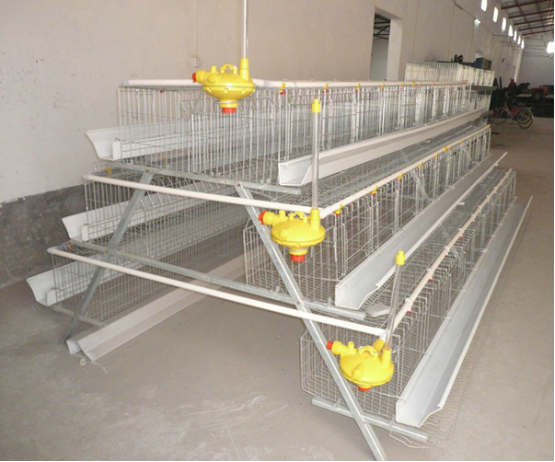

Chicken cage specifications Features

Material: cold drawn wire Q235

Surface: cold galvanized (can also be customized spray dip)

specification:

1. Length 195cm (divided into 5), the bottom width of 52cm (3cm bend), cage body width 34cm, the former high 37cm, after the high 32cm;

2. A total of 5, can raise 15; each group of 6 cage can raise 90.

3 wire diameter: the main wire 3.0mm, vice wire 2.6mm.

4. The door is up and down the door, the front door, wide 20cm, high 26cm;

5. Egg tray mesh 2.8cm * 10cm, cage side mesh 3cm * 12cm, mesh pitch before and after 5 * 10cm.

6. Assembled as a three-tier ladder, length 195cm * width 200cm * height 156cm.

Features:

1. Correctly adjust the output current, the effective use of electrical energy, by heating and pressurizing, so that the two pieces of weldment (wire) dissolved as a whole, so that the cage mesh welding firm, solid solder joints, solder joints do not open to improve the welding Bearing capacity of cages.

2. High-density feeding, land conservation, saving more than 50% of free-range cultivation of land. Centralized management saves energy and resources, reduces costs, reduces morbidity,

3. Unique cage design (up and down the door and sliding door), effectively prevent the chicken feed the head shaking up and down waste feed.

4. The traditional design process to ensure the life and quality of the cage,

5. Convenient assembly, can be adjusted according to the site, can be equipped with automatic drinking water, automatic filling, automatic dung, farming automation.

6. Make appropriate adjustments according to the site, do single-storey, multi-storey, ladder adjustment, can be equipped with automatic drinking water system.

7. Cages can be used for more than 10 years.

8. Chicken in the growth process without mortality.

9. The eggs will not break or fall out of the cage.

10. can increase egg production rate.

11.Special specifications can be customized to order can also be customized.
