Introduction of species of cultured chicken cages

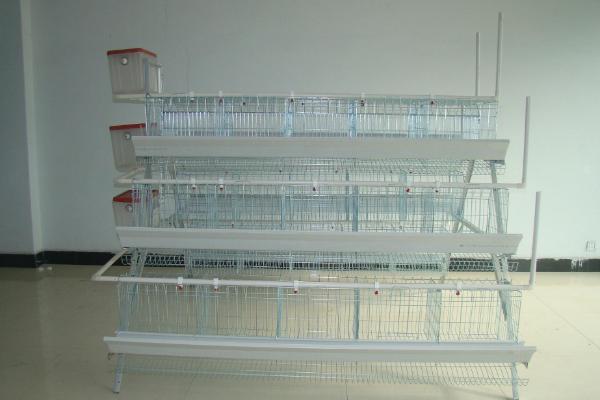

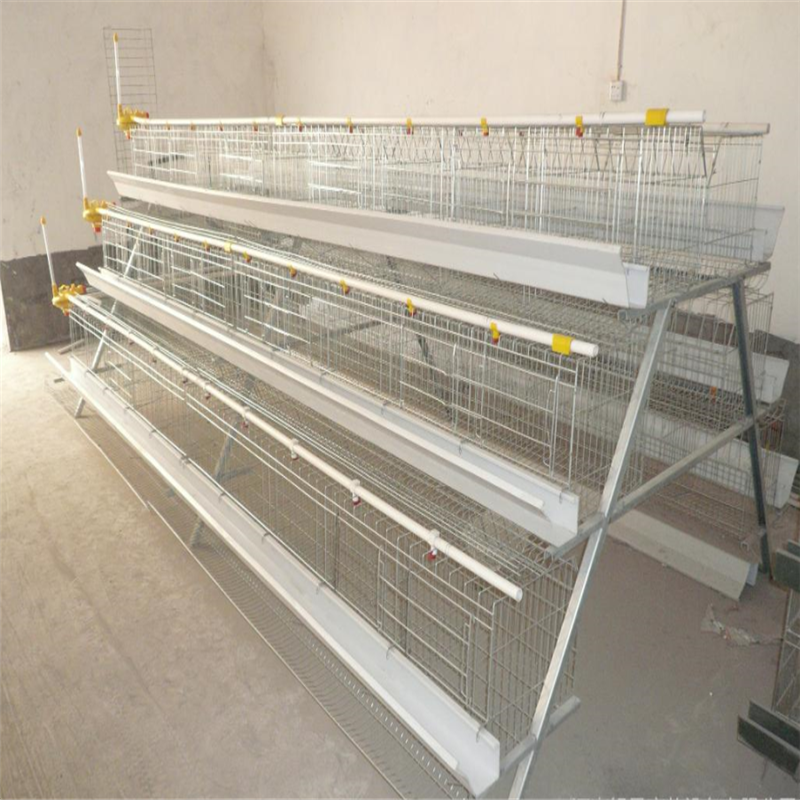

1, full step chicken cage

Full-step chicken cages are usually 2 or 3 layers with no stacking or stacking between layers. Its strengths are:

1. Each layer of cages has a large opening area and good ventilation. Uniform illumination;

2. The work of clearing the dung is relatively simple;

3. The structure is simple and easy to repair;

4. It is easy to operate manually when the machine is faulty or power outage. The drawback is that the culture density is low, usually 10-12 per square meter.

2, half step chicken cage

There are some stacks on the half-step chicken cage and between the base layers. Some of the upper base layer stacks have a septic plate. The septic plate is pressed by a certain point of view device, and the stool slides into the human pit.

Its line density is 15-17/square root, which is higher than the full ladder, but lower than the stacking type. Due to the obstruction of the snorkel, the ventilation is slightly worse than the full step.

3, cascading chicken cage

The stacked chicken cages are fully stacked between the base layers, and the chicken droppings are carried by the conveyor belt between the layers. Its strength is high feed density, three-layer full-stack farming density of 16-18/m2, and four-layer full-stacking density of 18-20/m2.

The number of layers of the stacked chicken cage can reach more than 8 layers, which is suitable for the chicken farm with high degree of mechanization. The breeding density can be greatly improved, the area of ​​the chicken farm is reduced, and the production efficiency of the farmer is improved. However, there is a high demand for construction of chicken houses, ventilation equipment and cleaning equipment. This is usually the case in laying hen farms in developed countries.
