Automatic Poultry Equipment Nipple Drinker for Chicken

Product Description：

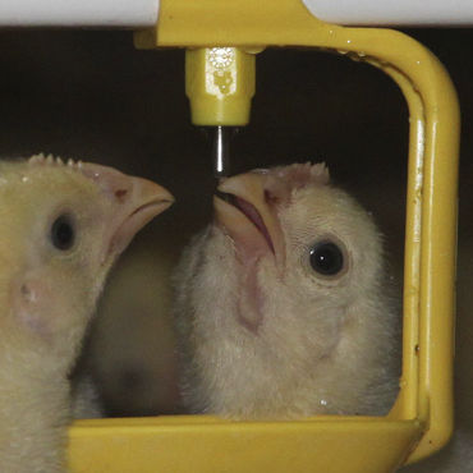

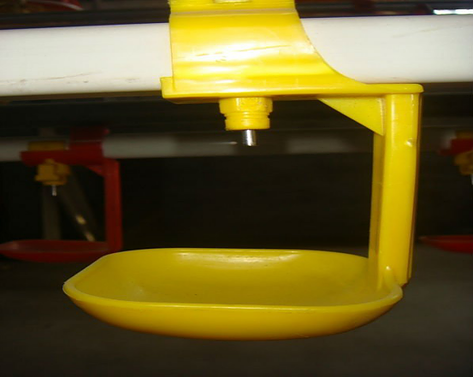

Automatic nipple drinking system:

1. In modern poultry production, nipple drinkers have proven to be a reliable and hygienic solution for the supply of water.

2. Nipple drinking system: water front parts , drinking system, hanging system, regulator, water line end parts .

3. The nipple shell is made of high-quality engineering plastic, and the valve rod inside is made of high-quality stainless steel.

4. All these features make it anti-corrosion, anti-rust.

5. Double-decked seal structure can effectively avoid wasting water and the resulting impact on the environment humidity.

6. Valve stem can rotate freely at 360 degree to meet bird water demand of different period.

7. The hanging system: it is easy to adjust the height and the levelness by the winch and the adjustable strip.

8. Feeding capacity:

broiler: 8-12 birds /nipple, birds in cage: 12 birds/nipple, breeder: 10 birds/nipple

Technical data:

Flow rate:10 L / h - 2.5 m3/h

Working pressure :0.3bar-6bar

Dosing rate:0.02L / h - 50 L/ h

Maximum working temperature :40ºC

Adjustment ratio:0.2% to 2%(1:500-1:50)

Connecting size:external thread G3/4

Specification:

Material:Plastic and stainless steel

Exact water flow, 30, 55, 90, 120 ml /Min

How to choose right nipple drinker:

1.30 ML nipple drinker use for chick, breeder chicken, layer chicken.

2.55 ML nipple drinker use for broiler chicken

3.90 and 120 ML nipple drinker use for duck.

PS:The water pressure must in 0.3 Pa, or water pressure pipe in 30 cm.
