One、 Ensure that the fasteners are secure during installation. The transmission part is flexible and the operation is stable. Lubricating oil is required for each operating part and gearbox.

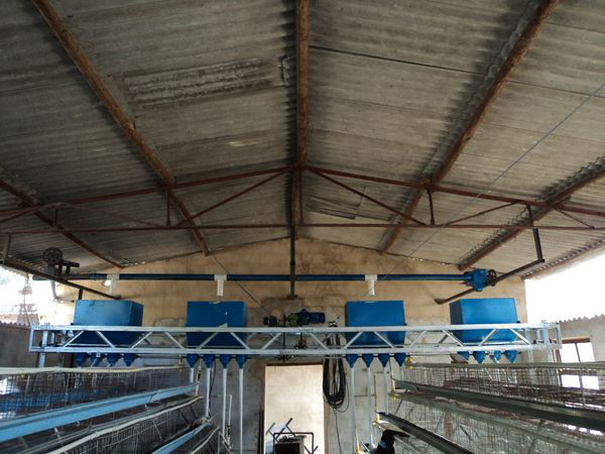

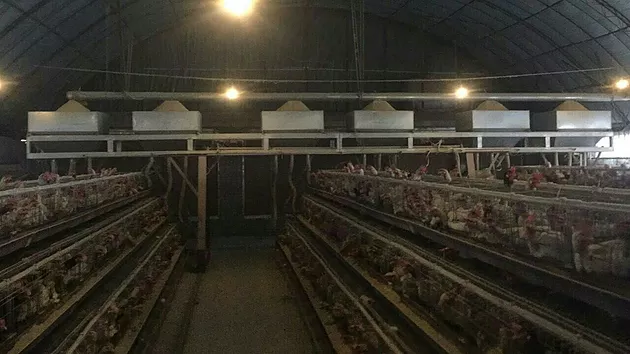

Two、 track laying, in order to ensure that the feeder running smoothly, and for a straight run, need to lay the track chicken coop.
a. Adjust the channel of all feeders to the same width, and the cages are the same level and arranged in parallel.
b. Fix the 3*30 angle steel on the ground plane according to the position of the guide wheel. Note that the joint position should be smooth and smooth. The weld should be on the back of the angle steel. When laying, first mark the laid track position into a real line and divide it on a straight line. Segment drilled 6mm hole, with 6mm * 100MM round steel into the hole, making it 17mm above the ground and then connect the angle steel is connected to the round steel, the two ends into the cage 500-300mm can.
Three、 Feeder and chicken house channel width adjustment, the feeder is divided into AB two models A type feeder width 600MM for channel width between 650-800MM, and the chicken cage should be left at both ends 1.5-2.0 M space for feeders to turn around.
Four、Adjustment of the feed amount, there is no feeding adjustment port at the bottom of the machine feeding pipe, which can be adjusted according to the feed intake of the chicken. When the feeding amount is small, the feeding port at the lower end of the feeding pipe is adjusted to be smaller, and conversely, it is increased.
Five、Operation: Push the front guide wheel of the feeder filled with feed to the floor rail on the ground and push the bulk material pipe to the chicken trough, and adjust the feeding port size according to the required feeding amount. , Closing the clutch, when the feed pipe feed feed out, close the walking clutch feeder to achieve uniform speed, while the feed evenly falls into the chicken trough, after the first to separate the feed clutch, and then separate the running clutch . If the space at the two ends of the house is large enough, a jumper can be directly shot. Otherwise, the flip handle on the feeder can be pulled so that the feed hopper can be turned to the vertical position of the feeding pipe to reduce the turning radius.
