1, Laying cages: China's current production of cages are suitable for more light-type cages and medium-sized laying hens (such as Rose, Star Miscellaneous 579, etc.) of the medium-sized cages. The overall structure of a full-height ladder-type cage commonly used in production is shown in Figure 10-2.
① cage: is to withstand the cage bracket, composed of beams and bracing. Beams and bracing are usually made of angle or channel steel with a thickness of 2 to 2.5 mm.
② cage: cage is cold-rolled steel wire by spot welding, and then assembled from galvanized, including the top net, bottom net, before the net, after net, netting and cage doors. In general, the top net and the top net are pressed together. After the net and the bottom net are pressed together, the net is a monolithic net, and the cage door is taken as a part of the front net or the top net. Some can be removed and some can be turned on. Bottom of the net to have a certain slope (that is, roll egg), usually 6 ~ 10 °, 12-16 cm out of the cage to form a collection of egg trough. The cage size is generally 40 to 45 centimeters high and the depth is about 45 centimeters. Each chicken has 3 to 5 chickens, and the cage structure is shown in Figure 10-3.
③ ancillary equipment: Protector for a long strip of galvanized sheet metal, placed in front of the cage below the bottom and the bottom of the network spacing of 5.0 to 5.5 cm, the spacing is too large, the chicken head can be extended out of the cage Omelette egg , The pitch is too small, the egg can not be rolled down.
The trough is a long groove made of galvanized sheet metal or plastic and is installed outside the front net. Trough should be installed straight, the upper edge should be back to eaves, to prevent chicken chops expected.

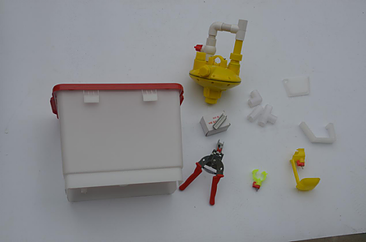

Sinks are long grooves made of galvanized sheet metal or plastic, mostly "v" or "u" shaped, mounted above the trough. Sink installation should be more straight, so that each of the chicken bit depth of water is basically the same, can not have some chicken water and some excessive bit of water outflow. In addition to the long tank, there nipple drinker and cup-type drinking fountains and so on.
Stacked, semi-ladder and integrated configuration of the cage, as a result of up and down the exhibition cage overlap, so overlap the two layers of cage asked to set the board, in order to avoid the upper basket of chicken fell on the cage chicken body.

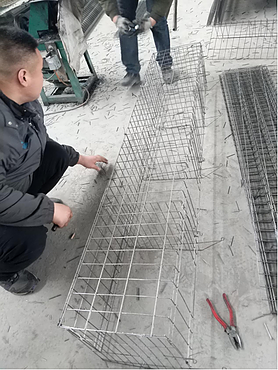

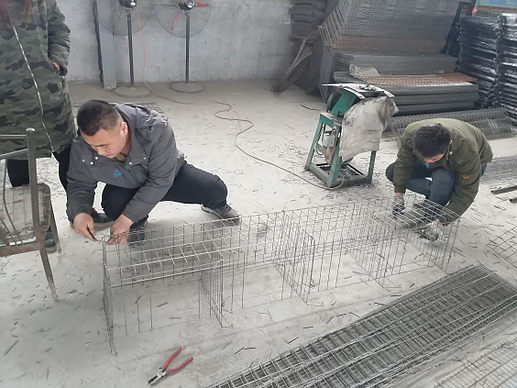

④ cages overall installation: assembly cages. First installed a good cage, with a cage card fixed water cages connected to the cage, so that the formation of cage. Then install manger, sink, cage on the cage. The middle and lower cages are generally hung on the hooks protruding from the cages. The front ends of the cages are hung with wire hooks on the edge of the feeding grooves to enhance the rigidity of the front part of the cage. At the middle of the rear of each cages net, Another set of two steel wire, were hung in the hook on both sides of the cage, in order to increase the rigidity of the cage bottom network. The upper cage consists of two cage the same size back-to-back together, the two bottom net and two net were connected into a whole, respectively, in order to increase the rigidity of the net in front of the hook hanging hanger edge, bottom net The middle of the shelf in the cage on the beam.
